Electric oven knob control pcba kit PID temperature control board with dual NTC sensor for SKD CKD o

Product Specs

• Front knob display panel size: 264mm × 61.5mm

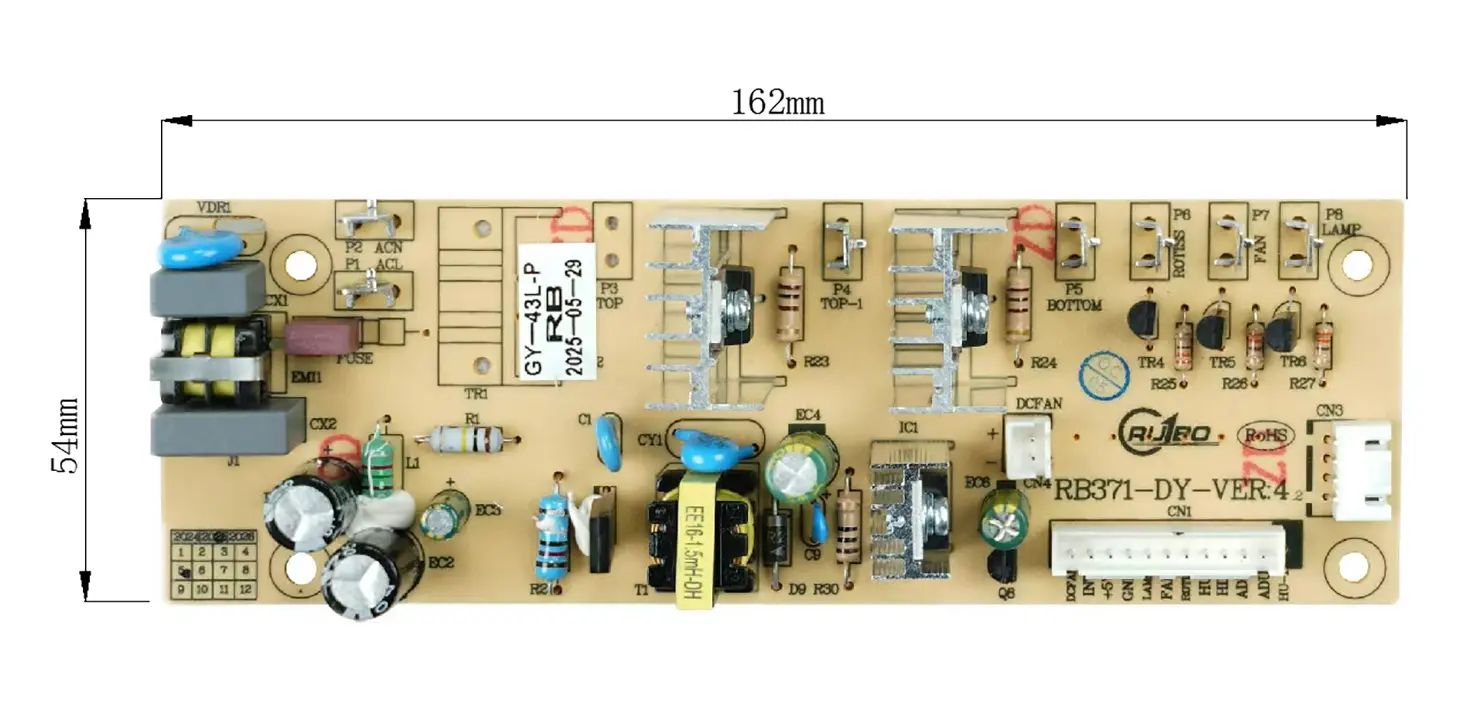

• Power main control board size: 162mm × 54mm

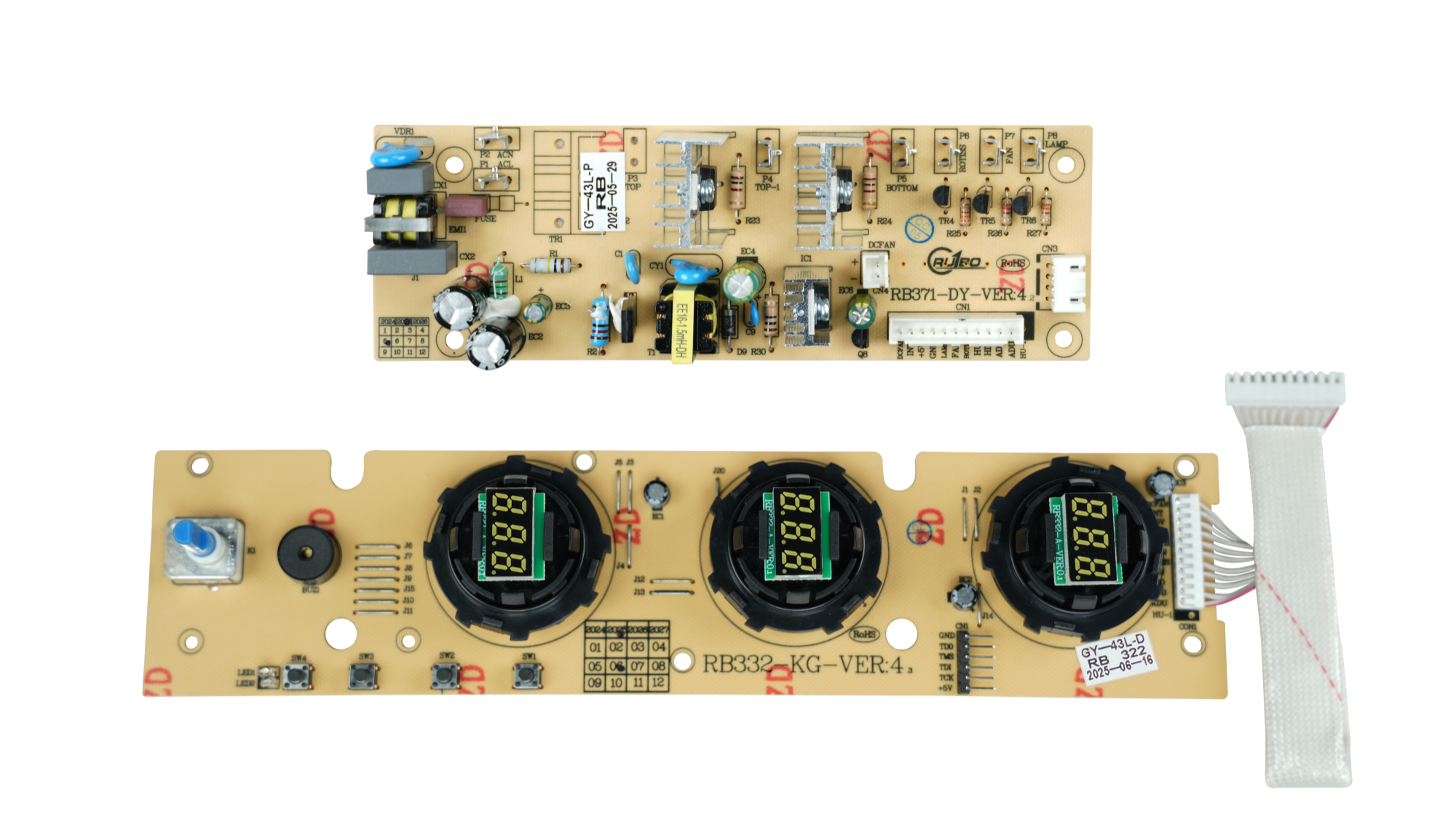

• Complete set includes: Knob display operation panel + main power driver PCBA + connecting cable

• Supported loads: Upper heating tube, lower heating tube, convection fan, rotisserie function, oven lamp

• Temperature solution: Dual‑NTC temperature sensing, PID algorithm for precise temperature adjustment

Advanced Functional Features

Product Overview

1. Display‑Control All‑in‑one Rotary KnobsPhysical knobs with built‑in digital display. Users adjust time, temperature and working mode by rotating knobs; real‑time digital reading avoids ambiguous setting of traditional mechanical knobs. Classic hardware‑knob design matches consumer habits in Europe, Middle‑East and Southeast‑Asia.

2.


3. Dual‑NTC Sensing + PID Precise Temperature Control
4. Equipped with two NTC temperature sensors inside oven cavity. PID algorithm dynamically adjusts heating output. Effectively prevent over‑heating & temperature drift, keep stable cavity temperature for baking, roasting and convection cooking.

5.


6. Full‑function Hardware CompatibilityReady for upper / lower heating tubes, convection circulation fan, rotisserie spit function and oven lighting. One‑set solution covers mainstream household oven functional requirements.

7.


8. Complete PCBA Kit, Easy‑for‑assemblySupplied as matched panel + mainboard harness set. Oven manufacturers & CKD assembly factories do not need to spend extra time for board‑to‑panel matching test. Shorten product development cycle.

9.


10. OEM Customization AvailableCustom knob overlay, parameter setting, firmware logic, support multi‑voltage version for different‑region market.

Oven OEM / ODM Manufacturers , What you care most ?

1. New model development cycle is long; time‑cost for matching display panel and mainboard is high.

2. Poor temperature control performance will cause high product return rate and bad user review.

3. Need stable hardware which can pass CE / EMC home‑appliance compliance test.

4. Knob style needs to fit local market consumption preference.

5.


1. Supply fully‑matched knob‑panel + mainboard kit. No extra R&D work for cross‑board matching, shorten new‑model launch period.

2. Dual‑NTC + PID temperature control greatly reduce temperature deviation, lower after‑sales return caused by bad baking effect.

3. PCBA reserved complete EMC circuit design, help whole oven pass home‑appliance certification smoothly.

4. Physical knob form fits European & global market preference; support custom knob faceplate for brand personalization.

5.


 Overseas SKD / CKD Assembly Factories, What you care most ?

1. Source full‑set spare‑parts for local assembly; hope to buy matched control kits in one order instead of sourcing components separately.

2. Stable quality for large‑batch assembly; simple installation and wiring for local workers.

3. Flexible parameter adjustment to meet local market oven specification.

4. Competitive cost for complete control kit.

1. One‑stop supply full knob control kit: display panel + main control pcba + connecting cable. Customers can purchase together with oven cavity, heating elements, fans. Perfect for CKD assembly business model.

2. Mature hardware design, simple plug‑in wiring structure, reduce assembly error rate in mass production.

3. Firmware adjustable for temperature range, timer parameter, functional logic, adapt to various oven cavity solution.

4.


 After‑market spare‑part dealers & repair vendors, What you care most ?

1. Old oven original control board damaged; hard‑to‑find compatible replacement complete set.

2. Concern whether replacement kit can match existing oven heating and fan parts.

3.


1. Standard load definition matches most household oven hardware, works for after‑sales replacement projects.

2. Full‑set kit includes panel, mainboard and harness, customers get all needed parts in one shipment.

Customer Group4: Brand traders / Cross‑border e‑sellers, What they care most ?
