Range Hood Control Board touch color film interface, hand gesture sensing, DC brushless motor drive

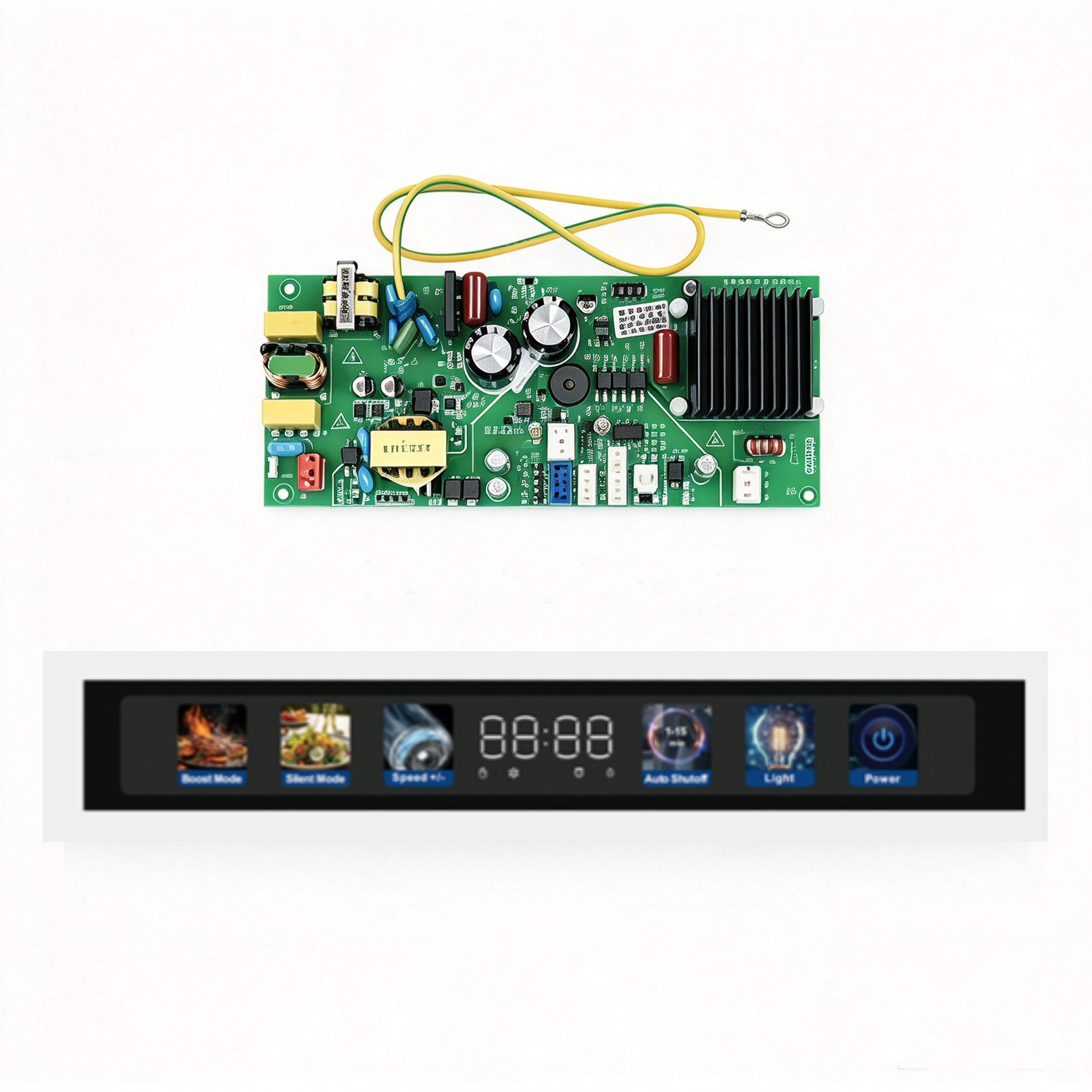

Our RB794-KG / RB684-DY range hood control system includes a main power PCB board and a touch color film control panel, specially designed for wholesale buyers, cooker hood manufacturers and kitchen appliance OEM factories.

This cooker hood controller supports touch color film interface, hand gesture sensing, DC brushless motor drive, 3 fan speed levels, instant boost suction, 10W/20W DC LED light and full-color ambient light.

The control panel size: 303mm38mm; main PCB board:180mm74mm.

How we solve your problem .

1. Stable & reliable electronics reduce after-sales complaints

   Our DC brushless drive solution has stable output, low failure rate. Wholesalers can cut repair costs and bad return rates from your end customers.

2.


3. Ready-made modular design for quick assembly

   Plug-and-play structure. Your hood assembly line can finish installation fast, shorten production cycle and save labor cost.

4.


5. Flexible customization for different hood models

   We support function adjustment, panel UI modification, parameter tuning to match your different range hood product lines, help you enrich your product portfolio and compete in local market.

6.


7. Bulk wholesale & MOQ friendly

   We support bulk container order for kitchen appliance distributors. Stable supply chain ensures on-time delivery, avoid stock out risk for your warehouse.

8.


9. One-stop technical support

   We provide wiring diagram, testing guide and engineer support. Your team can solve technical questions quickly without long waiting.

10.

11.


FAQ

Q1: What is this RB794-KG RB684-DY kit?

A: It is a complete range hood control kit including main PCB driver board + touch color film control panel, for DC brushless motor cooker hood upgrade & new production.

Q2: Can this range hood control board work with different DC brushless motors?

A: Yes, we can tune the board parameters to match your DC brushless motor specifications. Please send your motor specs for confirmation before bulk order.

Q3: What functions does this gesture sensor cooker hood controller have?

A: Touch color film, gesture sensing, 3-speed fan, instant boost suction, 10W/20W DC lighting, full-color ambient light, timing function.

Q4: What is your MOQ for wholesale range hood PCB boards?

A: Negotiable MOQ for bulk wholesale orders. Contact us to get best bulk price for kitchen appliance distributors.

Q5: Can I customize the UI icons or function logic on the touch panel?

Q6: Do you provide technical documents for installation?

A: Yes, wiring diagrams, testing instructions and operation manuals will be supplied together with goods. Our technical team supports after-sale consultation.

Q7: What is the size of the control panel and main PCB?

A: Touch control panel: 303mm × 38mm; Main power PCB board:180mm ×74mm.

Q8: What is the warranty of your cooker hood control board?

A: We offer standard warranty period. Contact our sales team for detailed warranty terms for bulk wholesale.
